Install-Oracle11g-ASM-Linux6.3-VBox

Install Oracle 11gR2 on Oracle Linux 6.3 with ASM

  Software
  • Oracle Linux 6.3
  • Virtual Box4.2.6
  • Oracle Grid 11.2.0.1
  • Oracle 11gR2( 11.2.0.1)

 Install the Oracle Linux on Virtual Box

Refer here.

Configure Hosts Name

/etc/hosts and /etc/sysconfig/network must have the host name.

 image: http://lh3.ggpht.com/-3btRJXDyaP4/UOUQOVpc6nI/AAAAAAAACmU/xTlhJ2CeD_w/image_thumb%25255B66%25255D.png?imgmax=800
Configure Kernel Parameter and number of open file descriptor
Refer here for the Oracle Requirement and here for how to fix kernel parameters.

Install ASM package
  • ASM Kernel: Part of the Oracle Linux Kernel ( UEK). Can be upgrade from Oracle public yum repository. Part of Oracle Linux installation media.
  • ASM support: Can be upgrade from Oracle public yum repository. Part of Oracle Linux installation media.
  • ASM lib: Only can be download from Oracle side.
Kernel 2.6.39-300.17.3.el6uek will break the Virtual Box Guest Additions.
rpm -Uvh oracleasmlib-2.0.4-1.el6.x86_64.rpm
yum install oracleasm-support

 image: http://lh5.ggpht.com/-S3l0qNnQDVc/UOUQPZReNnI/AAAAAAAACmk/0TesGeF9ExU/image_thumb%25255B1%25255D.png?imgmax=800

 image: http://lh5.ggpht.com/-sYKNPGyHtio/UOUQQejuxXI/AAAAAAAACm0/VGd-wYvt9EI/image_thumb%25255B4%25255D.png?imgmax=800

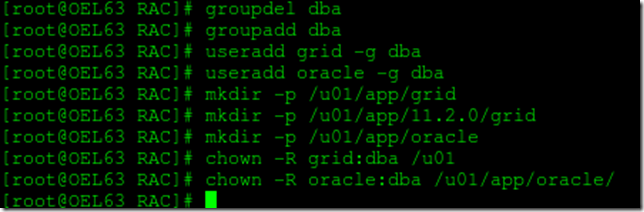

Create user/group
groupadd dba
useradd grid -g dba
useradd oracle -g dba
# set password
passwd grid
passwd oracle

 image: http://lh3.ggpht.com/-vMIHZCAPcLc/UOUQRPlRsWI/AAAAAAAACnE/yQgCDTOtDJo/image_thumb%25255B7%25255D.png?imgmax=800

Create Software installation folders

  • /u01/app/oracle –> for $ORACLE_BASE for Oracle Database instance
  • /u01/app/grid –> for $ORACLE_BASE for ASM instance
  • /u01/app/11.2.0/grid –> for $ORACLE_HOME for ASM instance


mkdir -p /u01/app/grid
mkdir -p /u01/app/11.2.0/grid
mkdir -p /u01/app/oracle

chown -R grid:dba /u01
chown -R oracle:dba /u01/app/oracle

 image: http://lh4.ggpht.com/-TEa-nx4yMBw/UOUQRy_D2MI/AAAAAAAACnU/WaamqlY8D0Q/image_thumb%25255B11%25255D.png?imgmax=800

Configure oracle User profile

~oracle/.bash_profile
TMP=/tmp; export TMP
TMPDIR=$TMP; export TMPDIR

ORACLE_HOSTNAME=RAC1.localdomain; export ORACLE_HOSTNAME
ORACLE_UNQNAME=RAC; export ORACLE_UNQNAME
ORACLE_BASE=/u01/app/grid; export ORACLE_BASE
GRID_HOME=/u01/app/11.2.0/grid; export GRID_HOME
DB_HOME=/u01/app/oracle/product/11.2.0/db_1; export DB_HOME
ORACLE_HOME=$DB_HOME; export ORACLE_HOME
ORACLE_SID=RAC1; export ORACLE_SID
ORACLE_TERM=xterm; export ORACLE_TERM
BASE_PATH=/usr/sbin:$PATH; export BASE_PATH
PATH=$ORACLE_HOME/bin:$BASE_PATH; export PATH

LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib; export LD_LIBRARY_PATH
CLASSPATH=$ORACLE_HOME/JRE:$ORACLE_HOME/jlib:$ORACLE_HOME/rdbms/jlib; export CLASSPATH
~oracle/.bashrc
alias grid_env='. /home/oracle/grid_env'
alias db_env='. /home/oracle/db_env'

 ~oracle//grid_env
ORACLE_SID=+ASM1; export ORACLE_SID
ORACLE_HOME=$GRID_HOME; export ORACLE_HOME
PATH=$ORACLE_HOME/bin:$BASE_PATH; export PATH

LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib; export LD_LIBRARY_PATH
CLASSPATH=$ORACLE_HOME/JRE:$ORACLE_HOME/jlib:$ORACLE_HOME/rdbms/jlib; export CLASSPATH
~oracle//db_env
ORACLE_SID=RAC1; export ORACLE_SID
ORACLE_HOME=$DB_HOME; export ORACLE_HOME
ORACLE_BASE==/u01/app/oracle; export ORACLE_BASE
PATH=$ORACLE_HOME/bin:$BASE_PATH; export PATH

LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib; export LD_LIBRARY_PATH
CLASSPATH=$ORACLE_HOME/JRE:$ORACLE_HOME/jlib:$ORACLE_HOME/rdbms/jlib; export CLASSPATH

Configure ASM

/etc/init.d/oracleasm configure

 image: http://lh4.ggpht.com/-rzhXLbdSMXo/UOUQTH02YXI/AAAAAAAACnk/Y33Wf0nAaKc/image_thumb%25255B15%25255D.png?imgmax=800
Use chkconfig to check whether oracleasm service is set to start up automatically. and also check the /etc/rc.*/

 image: http://lh6.ggpht.com/-SbLikEfkv4U/UOUQUM9AJbI/AAAAAAAACn0/ZRImmJFtAWM/image_thumb%25255B19%25255D.png?imgmax=800

Add Disk to VM

"C:\program Files\Oracle\VirtualBox\VBoxManage.exe" createhd --filename D:\VirtualBoxVM\OEL63\ASM_1.vdi --size 5120 --format VDI --variant Fixed
"C:\program Files\Oracle\VirtualBox\VBoxManage.exe" createhd --filename D:\VirtualBoxVM\OEL63\ASM_2.vdi --size 5120 --format VDI --variant Fixed
"C:\program Files\Oracle\VirtualBox\VBoxManage.exe" createhd --filename D:\VirtualBoxVM\OEL63\ASM_3.vdi --size 5120 --format VDI --variant Fixed
"C:\program Files\Oracle\VirtualBox\VBoxManage.exe" createhd --filename D:\VirtualBoxVM\OEL63\ASM_4.vdi --size 5120 --format VDI --variant Fixed

"C:\program Files\Oracle\VirtualBox\VBoxManage.exe" storageattach OEL63 --storagectl "SATA" --port 1 --device 0 --type hdd --medium D:\VirtualBoxVM\OEL63\ASM_1.vdi
"C:\program Files\Oracle\VirtualBox\VBoxManage.exe" storageattach OEL63 --storagectl "SATA" --port 2 --device 0 --type hdd --medium D:\VirtualBoxVM\OEL63\ASM_2.vdi
"C:\program Files\Oracle\VirtualBox\VBoxManage.exe" storageattach OEL63 --storagectl "SATA" --port 3 --device 0 --type hdd --medium D:\VirtualBoxVM\OEL63\ASM_3.vdi
"C:\program Files\Oracle\VirtualBox\VBoxManage.exe" storageattach OEL63 --storagectl "SATA" --port 4 --device 0 --type hdd --medium D:\VirtualBoxVM\OEL63\ASM_4.vdi


 image: http://lh4.ggpht.com/-BsYYofSPNlk/UOUQWuKAGJI/AAAAAAAACoE/32vz8Nn92xo/image_thumb%25255B28%25255D.png?imgmax=800

image: http://lh4.ggpht.com/-RI7SgJM9gJE/UOUQZEh2wWI/AAAAAAAACoU/5_PgmBUElyI/image_thumb%25255B25%25255D.png?imgmax=800

Partition Disks

All Disks needed to be partition first. Refer here.

 image: http://lh5.ggpht.com/-vd7d7xDhXJw/UOUQanvRDqI/AAAAAAAACok/KojKvSKLGTs/image_thumb%25255B30%25255D.png?imgmax=800

Create ASM Disk

Disk needs to be partition first before we use oracleasm.
# list all the disks
fdisk -l
oracleasm createdisk DISK_NAME DEVICE_NAME
image: http://lh3.ggpht.com/-DppriinnTU4/UOUQccUM8uI/AAAAAAAACo0/rIdtmqftJLs/image_thumb%25255B32%25255D.png?imgmax=800

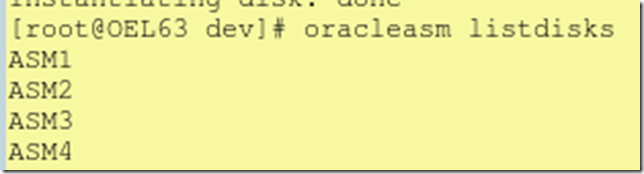

oracleasm listdisks

 image: http://lh6.ggpht.com/-M3JArj9iwbI/UOUQdUAD8bI/AAAAAAAACpE/jhy4OqgAR5k/image_thumb%25255B34%25255D.png?imgmax=800
oracleasm querydisk /dev/sdb1

 image: http://lh3.ggpht.com/-JQVwxb4Xr_E/UOUQfVcEtyI/AAAAAAAACpU/_1ROL1JaYWg/image_thumb%25255B36%25255D.png?imgmax=800
Remove the ASM disk
oracleasm deletedisk DISK_NAME

 image: http://lh5.ggpht.com/-x-2lnR72dWQ/UOUQg-bcbrI/AAAAAAAACpk/cGIOF4LJQGg/image_thumb%25255B22%25255D_thumb.png?imgmax=800
image_thumb[22]

Installing the oracle-rdbms-server-11gR2-preinstall RPM



 yum install oracle-rdbms-server-11gR2-preinstall

 Refer here.

Install the Grid Infrastructure

Login as ‘grid’ user and Make sure the Below environment variables before execute the runInstaller .
  • $ORACLE_HOME
  • $ORACLE_BASE
  • $ORACLE_SID

 image: http://lh3.ggpht.com/-UH_4715hBlk/UOUQh3uitPI/AAAAAAAACp0/LkUE1f0t4Vc/image_thumb%25255B60%25255D.png?imgmax=800
Execute ./runInstaller
Select “Install and Configure Grid Infrastructure for a standalone Server”

 image: http://lh3.ggpht.com/-CKoIFWkbt_o/UOUQi4Zaq-I/AAAAAAAACqE/satFScHZTsg/image_thumb%25255B38%25255D.png?imgmax=800

 image: http://lh4.ggpht.com/-91bVXgBOZqY/UOUQjiMQ2pI/AAAAAAAACqU/6280vVeHq5w/image_thumb%25255B40%25255D.png?imgmax=800
Name the disk group as DATA group.
Redundancy:
  • High: Similar to RAID 5. Require 3 disks.
  • Normal: Similar to RAID 1. Require 2 disks.
  • External: Single Disk. Rely on 3rd party vendor software to provide the redundancy.

 image: http://lh4.ggpht.com/-xgtgt7Yi9WA/UOUQkts4emI/AAAAAAAACqk/-XilYyPU7QE/image_thumb%25255B42%25255D.png?imgmax=800
Create the SYS and ASMSNMP password. If it does not meet Oracle recommendation, the installer will give the warming.

 image: http://lh5.ggpht.com/-5b6BhI1r8ic/UOUQlvtRdwI/AAAAAAAACq0/pqv5945LMwg/image_thumb%25255B45%25255D.png?imgmax=800
image: http://lh6.ggpht.com/-uynWUmAQUZY/UOUQmn7O6XI/AAAAAAAACrE/XQr4DWuTn4w/image_thumb%25255B48%25255D.png?imgmax=800

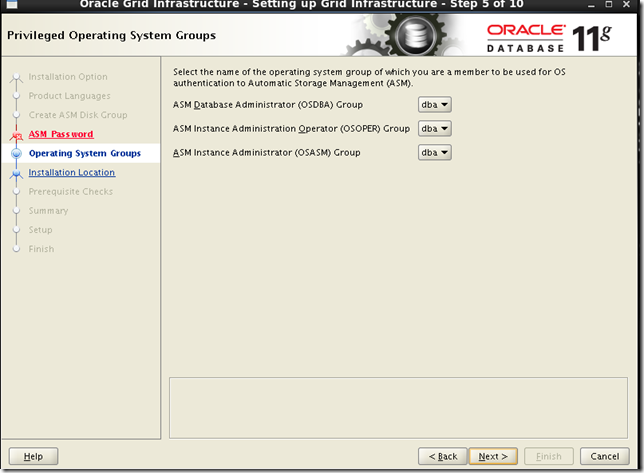

If OSDBA,OSPER and OSASM are using the same group, the installer would give the warming but wont affect the installation.

 image: http://lh3.ggpht.com/-LiijIBO-QR4/UOUQnRSs3HI/AAAAAAAACrU/838J73_iqog/image_thumb%25255B52%25255D.png?imgmax=800

 image: http://lh5.ggpht.com/-Dh41eoHdO9o/UOUQoON7IkI/AAAAAAAACrk/4fr8wwVq5xU/image_thumb%25255B63%25255D.png?imgmax=800

 image: http://lh5.ggpht.com/-44ePXZWoUJg/UOUQo7hUTZI/AAAAAAAACr0/cfwpTbagnzs/image_thumb%25255B64%25255D.png?imgmax=800

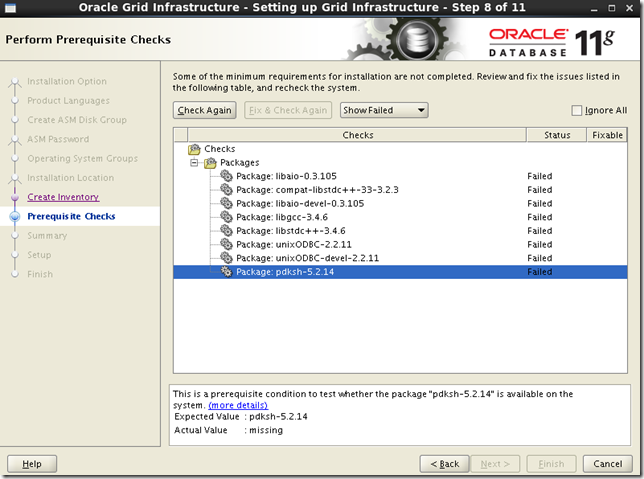

Use yum or rpm to install the missing packages. However, the 11.2.0 installer does not recognize the newer version of package therefore, if the system already has the newer version of the packages, it can be ignore. Below screenshot lists the common packages that can be ignore due to the installer does not recognize the newer package.
  • “pdksh” can be ignore as ksh has taken its place by  “oracle-rdbms-server-11gR2-preinstall”.
  • i386 packages has been replace by the i686 correspond packages.  Only need to make sure the i686 packages installed.

image: http://lh6.ggpht.com/-7p80YRghfaM/UOUQpw4BBgI/AAAAAAAACsE/dJSlHhBlQgs/image_thumb%25255B71%25255D.png?imgmax=800
yum list PACKAGE_NAME
yum install PACKAGE_NAME

 image: http://lh4.ggpht.com/-87l6Pytry70/UOUQqjcAowI/AAAAAAAACsU/Ki8pZQCQa6o/image_thumb%25255B73%25255D.png?imgmax=800

 image: http://lh3.ggpht.com/-xhihgfmGS6g/UOUQro6rGKI/AAAAAAAACsk/uT7M4SyPyO4/image_thumb%25255B76%25255D.png?imgmax=800

 image: http://lh6.ggpht.com/-cq-d122E3FM/UOUQslm-anI/AAAAAAAACs0/DixhyVf_qvA/image_thumb%25255B78%25255D.png?imgmax=800

 image: http://lh4.ggpht.com/-8TS_LdurNbI/UOUQtfMtjGI/AAAAAAAACtE/f9iM6LziQr8/image_thumb%25255B81%25255D.png?imgmax=800

 image: http://lh6.ggpht.com/-OCSWXVymzP0/UOUQuZB7e5I/AAAAAAAACtU/BBdfdsxLGeA/image_thumb%25255B82%25255D.png?imgmax=800
Root.sh would fail to execute at Linux 6.3. The solution is here.

Install Oracle Database

Login as ‘oracle’ user and Make sure the Below environment variables before execute the runInstaller .
  • $ORACLE_HOME
  • $ORACLE_BASE
  • $ORACLE_SID

 image: http://lh3.ggpht.com/-t5TRSXjxuqI/UOUQvJZBbEI/AAAAAAAACtk/OcRR5bk_rCw/image_thumb%25255B88%25255D.png?imgmax=800

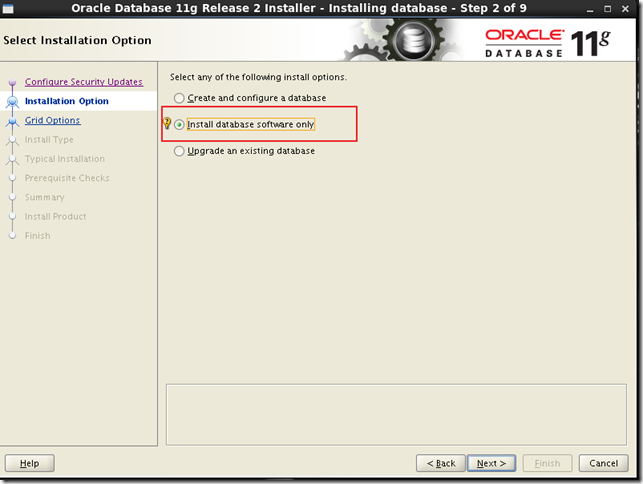

Execute runinstaller

 image: http://lh5.ggpht.com/-Q1sF2_pPz7s/UOUQv1VslRI/AAAAAAAACt0/n9Ead_J_xJI/image_thumb%25255B86%25255D.png?imgmax=800

 image: http://lh3.ggpht.com/-hM7fcWq6fsc/UOUQw1RSIrI/AAAAAAAACuE/g9e8BOytuR8/image_thumb%25255B90%25255D.png?imgmax=800

 image: http://lh5.ggpht.com/-nhOYVUTf0i4/UOUQxoqpNtI/AAAAAAAACuU/DAmTb_ZjzRY/image_thumb%25255B92%25255D.png?imgmax=800

 image: http://lh4.ggpht.com/-hRSgDCbl5j8/UOUQymvU5rI/AAAAAAAACuk/iib9xeGlJoQ/image_thumb%25255B95%25255D.png?imgmax=800

 image: http://lh5.ggpht.com/-TKA-ORJugDI/UOUQzVMacUI/AAAAAAAACu0/EC0GnD7xueQ/image_thumb%25255B96%25255D.png?imgmax=800

 image: http://lh5.ggpht.com/-ECedOCTlQXc/UOUQ0OHvG3I/AAAAAAAACvE/lGVY4BNsUNA/image_thumb%25255B100%25255D.png?imgmax=800

 image: http://lh4.ggpht.com/-DgsdnE1Nl-A/UOUQ0zzvP-I/AAAAAAAACvU/-IkuiPPI6hE/image_thumb%25255B99%25255D.png?imgmax=800

 image: http://lh4.ggpht.com/-8FQZR9qxKhw/UOUQ1x_zZqI/AAAAAAAACvk/Ch0CmNXhu-0/image_thumb%25255B102%25255D.png?imgmax=800

 image: http://lh5.ggpht.com/-z1_HOZsnDi0/UOUQ2rOZdYI/AAAAAAAACv0/O8u-hHtYJEI/image_thumb%25255B104%25255D.png?imgmax=800

 image: http://lh6.ggpht.com/-5V17bNqHorY/UOUQ3pyu9kI/AAAAAAAACwE/uMfSiwgfT6s/image_thumb%25255B106%25255D.png?imgmax=800

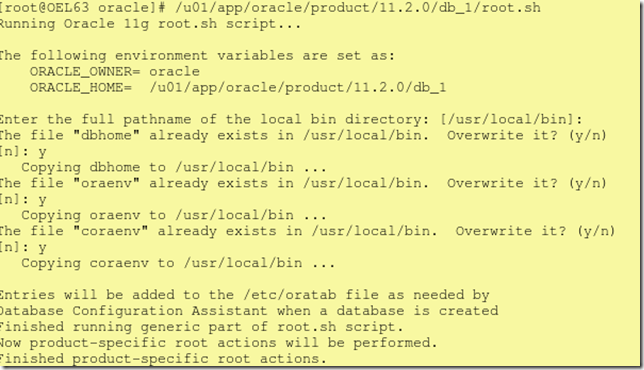

dbhome,oraenv and coreenv are already exist as part of grid infrastructure installation . Those files are identical.

 image: http://lh6.ggpht.com/-E_xGLhTAPvw/UOUQ4T1f2kI/AAAAAAAACwU/WEdKa9Y91kY/image_thumb%25255B108%25255D.png?imgmax=800

 image: http://lh5.ggpht.com/-bxNFpmjDGYQ/UOUQ5bvi98I/AAAAAAAACwk/WeT-gBalDRE/image_thumb%25255B110%25255D.png?imgmax=800

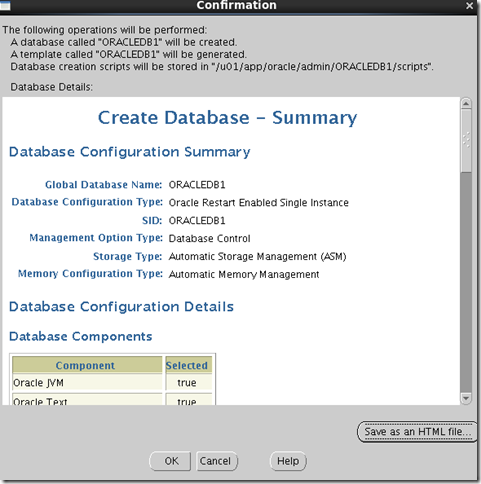

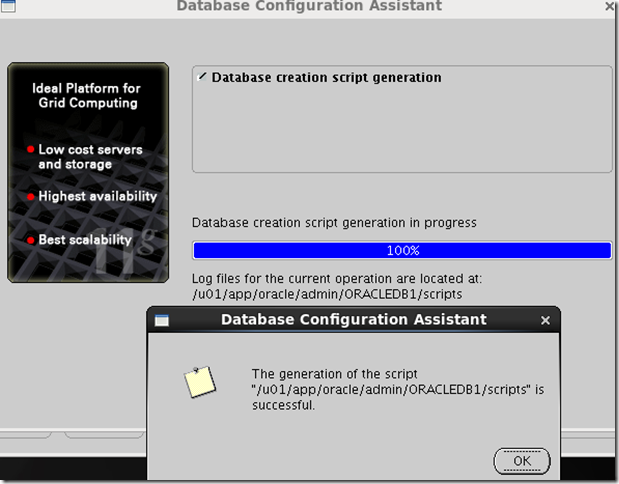

Create Oracle Database with DBCA.


 image: http://lh4.ggpht.com/-rsZxfR7vuh0/UOUQ5xSj__I/AAAAAAAACw0/ebADUTmkZUI/image_thumb%25255B112%25255D.png?imgmax=800

 image: http://lh3.ggpht.com/-ZXEEcATrT4g/UOUQ67XOd1I/AAAAAAAACxE/LvOK9IRSYkE/image_thumb%25255B116%25255D.png?imgmax=800

 image: http://lh3.ggpht.com/-PyMpBDegE7s/UOUQ8IY1PaI/AAAAAAAACxU/GNJ20FXnzo0/image_thumb%25255B118%25255D.png?imgmax=800

 image: http://lh5.ggpht.com/-MIGpV0XhcRI/UOUQ8wsUu9I/AAAAAAAACxk/QaE_HLgt2gc/image_thumb%25255B120%25255D.png?imgmax=800

 image: http://lh6.ggpht.com/--PZnkfiwoBQ/UOUQ-TjPcNI/AAAAAAAACx0/DUp3QoUsr_Y/image_thumb%25255B122%25255D.png?imgmax=800

 image: http://lh4.ggpht.com/-LnaIp-z0RSY/UOUQ_JV6YzI/AAAAAAAACyE/HPPqsnqWBvk/image_thumb%25255B124%25255D.png?imgmax=800

 image: http://lh4.ggpht.com/-JsdxzY35Sms/UOURAFj2EpI/AAAAAAAACyU/neQ-Acc2vF4/image_thumb%25255B137%25255D.png?imgmax=800

 image: http://lh5.ggpht.com/-j2_Mamlmzyw/UOURA-GIASI/AAAAAAAACyk/NSel_0iIgx4/image_thumb%25255B138%25255D.png?imgmax=800
Need to provide the ASMNMP password.

 image: http://lh5.ggpht.com/-tVhXqeqbHRI/UOURBZWiv_I/AAAAAAAACy0/SBmoOaSM7n0/image_thumb%25255B139%25255D.png?imgmax=800

 image: http://lh5.ggpht.com/-le19oVTq1EY/UOURCfM-AFI/AAAAAAAACzE/HlaB_kverdk/image_thumb%25255B140%25255D.png?imgmax=800

 image: http://lh3.ggpht.com/-wHVOlTjAuiw/UOURDAeZHGI/AAAAAAAACzU/cuUDA6m0LyM/image_thumb%25255B141%25255D.png?imgmax=800

 image: http://lh4.ggpht.com/-TBb0Pcmkve0/UOURDzkPs6I/AAAAAAAACzk/CpkX80cxhgg/image_thumb%25255B142%25255D.png?imgmax=800

 image: http://lh5.ggpht.com/-Fg3j6wD_WPg/UOUREq-ZhdI/AAAAAAAACz0/quVc82cPa54/image_thumb%25255B144%25255D.png?imgmax=800

 image: http://lh6.ggpht.com/-qvq6lKdVnug/UOURF2YJd9I/AAAAAAAAC0E/Ed9T2ey9B3I/image_thumb%25255B143%25255D.png?imgmax=800

 image: http://lh4.ggpht.com/-7TFQ7PyLxjU/UOURGnNYSFI/AAAAAAAAC0U/uVixMBPWfo4/image_thumb%25255B145%25255D.png?imgmax=800

 image: http://lh5.ggpht.com/-Iwax8i5rxvE/UOURHcUyZzI/AAAAAAAAC0k/ymB5C5Uo7II/image_thumb%25255B146%25255D.png?imgmax=800

 image: http://lh3.ggpht.com/-mdseY_uk5C0/UOURIabQLfI/AAAAAAAAC00/QW76YD9Go7Q/image_thumb%25255B147%25255D.png?imgmax=800

 image: http://lh6.ggpht.com/-AtY1KU5A8pU/UOUYPcQjElI/AAAAAAAAC3A/WYqmAtqgFoE/image_thumb%25255B149%25255D.png?imgmax=800
