1. Install 11.2.0.4 binaries in new ORACLE_HOME /data01/app/oracle/product/11.2.0.4/db_1
Download the binaries from oracle support website and unzip in a directory as below:
unzip p13390677_112040_Linux-x86-64_1of7 -d /home/oracle/software
unzip p13390677_112040_Linux-x86-64_2of7 -d /home/oracle/software
STEP 2
======
Install the latest 11.2 RDBMS Software into a new ORACLE_HOME.
Please note that with the 11.2 installation forward, all base RDBMS components are installed. The only options are if a component is linked on or off (active and able to be used). Custom installations are not possible.
You can run "opatch lsinventory -detail" against previous and new ORACLE_HOME to compare installed products.
Also please note:
======
Install the latest 11.2 RDBMS Software into a new ORACLE_HOME.
Please note that with the 11.2 installation forward, all base RDBMS components are installed. The only options are if a component is linked on or off (active and able to be used). Custom installations are not possible.
You can run "opatch lsinventory -detail" against previous and new ORACLE_HOME to compare installed products.
Also please note:
rootupgrade.sh will fail if you are using /opt/oracle as the ORACLE_BASE. For further information please see:
Note: 1281913.1 Root Script Fails if ORACLE_BASE is set to /opt/oracle

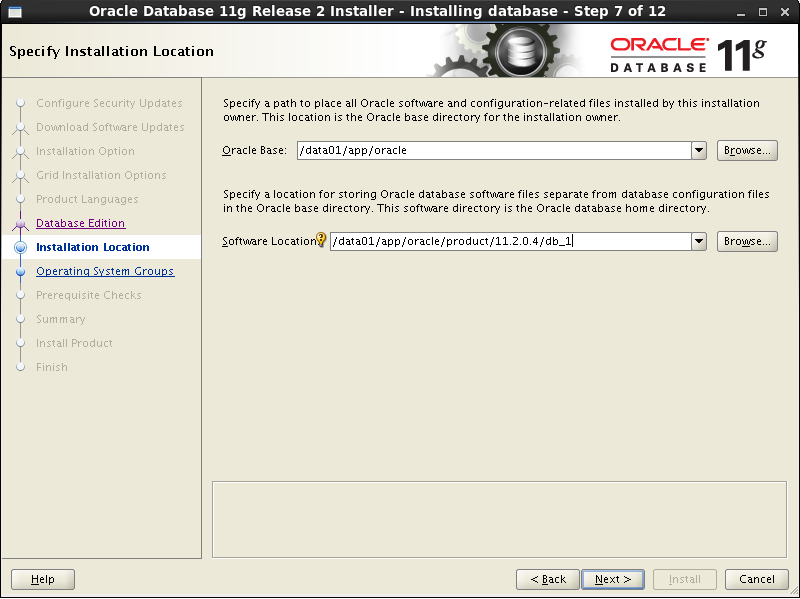

Start the runInstaller :
[oracle@node1 database]$ ls -lrth
total 60K
drwxrwxr-x 2 oracle oinstall 4.0K Aug 27 2013 sshsetup
-rwxrwxr-x 1 oracle oinstall 3.2K Aug 27 2013 runInstaller
drwxrwxr-x 2 oracle oinstall 4.0K Aug 27 2013 rpm
drwxrwxr-x 2 oracle oinstall 4.0K Aug 27 2013 response
-rwxrwxr-x 1 oracle oinstall 30K Aug 27 2013 readme.html
drwxrwxr-x 14 oracle oinstall 4.0K Aug 27 2013 stage
-rwxrwxr-x 1 oracle oinstall 500 Aug 27 2013 welcome.html
drwxrwxr-x 4 oracle oinstall 4.0K Aug 27 2013 install
[oracle@node1 database]$ ./runInstaller
Starting Oracle Universal Installer...
Checking Temp space: must be greater than 120 MB. Actual 4702 MB Passed
Checking swap space: must be greater than 150 MB. Actual 1285 MB Passed
Checking monitor: must be configured to display at least 256 colors. Actual 16777216 Passed
Preparing to launch Oracle Universal Installer from /tmp/OraInstall2015-01-16_10-11-15AM. Please wait ...
[oracle@node1 database]$ You can find the log of this install session at:
/data01/app/oraInventory/logs/installActions2015-01-16_10-11-15AM.log
When you click next it will promt you to run root.sh of node1 & node2 . So execute the root.sh using root on both nodes :
[root@node1 ~]# sh /data01/app/oracle/product/11.2.0.4/db_1/root.sh
Performing root user operation for Oracle 11g
The following environment variables are set as:
ORACLE_OWNER= oracle
ORACLE_HOME= /data01/app/oracle/product/11.2.0.4/db_1
Enter the full pathname of the local bin directory: [/usr/local/bin]:
The contents of "dbhome" have not changed. No need to overwrite.
The contents of "oraenv" have not changed. No need to overwrite.
The contents of "coraenv" have not changed. No need to overwrite.
Entries will be added to the /etc/oratab file as needed by
Database Configuration Assistant when a database is created
Finished running generic part of root script.
Now product-specific root actions will be performed.
Finished product-specific root actions.
Check the current version of the 11.2.0.1 Oracle RDBMS time zone definitions -
If this reports version 14 then there is no action to take for the Oracle time zone definitions, you can upgrade from 10.1.0.5 / 10.2.0.x or 11.1.0.x to 11.2.0.2 without any action on TSLTZ or TSTZ data.
If it is not 14 follow the doc : Actions For DST Updates When Upgrading To Or Applying The 11.2.0.2 Patchset (Doc ID 1201253.1)
SQL>SELECT version FROM v$timezone_file;
VERSION
----------
14
Manually Upgrade the database :
Now run the Pre-upgrade Utility tool and follow the recommendations:
[oracle@node1 ~]$ cp /data01/app/oracle/product/11.2.0.4/db_1/rdbms/admin/utlu112i.sql /home/oracle/upgrade/
[oracle@node1 ~]$ echo $ORACLE_HOME
/data01/app/oracle/product/11.2.0.3/db_1
[oracle@node1 ~]$
[oracle@node1 ~]$ /data01/app/oracle/product/11.2.0.3/db_1/bin/sqlplus / as sysdba
SQL*Plus: Release 11.2.0.3.0 Production on Fri Jan 16 12:19:13 2015
Copyright (c) 1982, 2011, Oracle. All rights reserved.
Connected to:
Oracle Database 11g Enterprise Edition Release 11.2.0.3.0 - 64bit Production
With the Partitioning, Real Application Clusters, Automatic Storage Management, OLAP,
Data Mining and Real Application Testing options
SQL> spool pre_upgrade_utlu112i_log.log
SQL> @/home/oracle/upgrade/utlu112i.sql
Oracle Database 11.2 Pre-Upgrade Information Tool 01-16-2015 12:21:01
Script Version: 11.2.0.4.0 Build: 001
See Misc A for utlu112i.sql spool output
Backup database for a Manual Upgrade:
run {
Backup database format 'someformatdirectory%U' TAG BEFORE_UPGRADE ;
Backup current controlfile format '/location/control_backup_name' ;
}
Prepare the New Oracle Home for the Upgrade:
1. Copy configuration files from 11.2.0.3 home to 11.2.0.4 home $ORACLE_HOME/dbs ( pfile , spfile)
2. Take backup of spfile also by creating a pfile at some non-default location
3. copy the password file from old home to new home
4. If you are doing a cluster database upgrade perform above steps on all nodes
5. In the pfile make necessary changes like :
--- Remove obsolete parameters
--- Make sure compatibility parameter is 11.2
-- Adjust other parameters as suggested by pre-upgrade utility
-- Make sure all paths are fully specified in the pfile
-- If you are upgrading a cluster database , make sure you make cluster_database=FALSE and after upgrade
you must set this back to TRUE
Manually Upgrade the database
1. Shutdown the database
2. change the PATH and bash profiles to point to new $ORACLE_HOME
3. If there us a different user and group for GRID and Oracle RDBMS then run the setasmgidwrap script which is located in $GRID_HOME/bin
against the new $ORACLE_HOME/bin/oracle directory with the -o option as shown below:
Run on all nodes :
[root@node1 ~]# ls -lrth /data01/app/oracle/product/11.2.0.3/db_1/bin/oracle*
-rwxr-x--- 1 oracle oinstall 0 Sep 17 2011 /data01/app/oracle/product/11.2.0.3/db_1/bin/oracleO
-rwsr-s--x 1 oracle asmdba 222M Dec 21 11:57 /data01/app/oracle/product/11.2.0.3/db_1/bin/oracle
[root@node1 ~]# ls -lrth /data01/app/oracle/product/11.2.0.4/db_1/bin/oracle*
-rwxr-x--- 1 oracle oinstall 0 Aug 24 2013 /data01/app/oracle/product/11.2.0.4/db_1/bin/oracleO
-rwsr-s--x 1 oracle oinstall 229M Jan 16 11:10 /data01/app/oracle/product/11.2.0.4/db_1/bin/oracle
[grid@node1 ~]$ $GI_HOME/bin/setasmgidwrap o=/data01/app/oracle/product/11.2.0.4/db_1/bin/oracle
4. From the new $ORACLE_HOME/rdbms/admin
$ORACLE_HOME/bin/sqlplus / as sysdba
SQL>spool startup_upgrade.log
SQL> Startup upgrade pfile='/location of pfile for new home with cluster_databse=false' ;
sql>spool off;
5. Once the DB is open in upgrade mode:
SQL> SPool catupgrade.log
SQL> @$ORACLE_HOME/rdbms/admin/catupgrd.sql ;
SQL> spool off ;
The catupgrd.sql script determines which upgrade scripts must be run , runs them and then shut down the database.
if this script fails for some reason , then you can run the script again after you correct the issue.
6. Now start the database .
7.Run SQL> @$ORACLE_HOME/rdbms/admin/utlu112s.sql "The Post Upgrade status tool" which provides the summary of the upgrade at the end of spool log.
SQL> @$ORACLE_HOME/rdbms/admin/utlu112s.sql ;
See MISC B for utlu112s.sql spool output:
.
8. Run @CATuppst.sql to perform upgrade actions that do not require the database to be in upgrade mode.
9. To reccompile any remaining stored procedure or java code
SQl> @$ORACLE_HOME/rdbms/admin/utlrp.sql ;
Verify the invalid objects count :
select count(*) from dba_invalid_objects ;
If the pre-upgrade information tool detected INVALID objects and populated teh registry$sys_inv_objs and registry$nonsys_inv_objs tables
then execute $ORACLE_HOME/rdbms/admin/utluiobj.sql to display only those objects which are newly invalid because of the upgrade process;
10. If you are upgrading a cluster database , then upgrade the database configuration in clusterware
srvctl upgrade database -d db-unique-name -o /new_oracle_home
11.For cluster database change the CLUSTER_DATABASE=TRUE and stop DB and start the database using the srvctl utility
SQL> select * from v$version ;
BANNER
--------------------------------------------------------------------------------
Oracle Database 11g Enterprise Edition Release 11.2.0.4.0 - 64bit Production
PL/SQL Release 11.2.0.4.0 - Production
CORE 11.2.0.4.0 Production
TNS for Linux: Version 11.2.0.4.0 - Production
NLSRTL Version 11.2.0.4.0 - Production
=======================================================================
Misc A:(utlu112i.sql spool output)
**********************************************************************Database:
**********************************************************************
--> name: RACDB
--> version: 11.2.0.3.0
--> compatible: 11.2.0.0.0
--> blocksize: 8192
--> platform: Linux x86 64-bit
--> timezone file: V14
.
**********************************************************************
Tablespaces: [make adjustments in the current environment]
**********************************************************************
--> SYSTEM tablespace is adequate for the upgrade.
.... minimum required size: 932 MB
--> SYSAUX tablespace is adequate for the upgrade.
.... minimum required size: 724 MB
--> UNDOTBS1 tablespace is adequate for the upgrade.
.... minimum required size: 400 MB
--> TEMP tablespace is adequate for the upgrade.
.... minimum required size: 60 MB
.
**********************************************************************
Flashback: OFF
**********************************************************************
**********************************************************************
Update Parameters: [Update Oracle Database 11.2 init.ora or spfile]
Note: Pre-upgrade tool was run on a lower version 64-bit database.
**********************************************************************
--> If Target Oracle is 32-Bit, refer here for Update Parameters:
-- No update parameter changes are required.
.
--> If Target Oracle is 64-Bit, refer here for Update Parameters:
-- No update parameter changes are required.
.
**********************************************************************
Renamed Parameters: [Update Oracle Database 11.2 init.ora or spfile]
**********************************************************************
-- No renamed parameters found. No changes are required.
.
**********************************************************************
Obsolete/Deprecated Parameters: [Update Oracle Database 11.2 init.ora or spfile]
**********************************************************************
-- No obsolete parameters found. No changes are required
.
**********************************************************************
Components: [The following database components will be upgraded or installed]
**********************************************************************
--> Oracle Catalog Views [upgrade] VALID
--> Oracle Packages and Types [upgrade] VALID
--> JServer JAVA Virtual Machine [upgrade] VALID
--> Oracle XDK for Java [upgrade] VALID
--> Real Application Clusters [upgrade] VALID
--> Oracle Workspace Manager [upgrade] VALID
--> OLAP Analytic Workspace [upgrade] VALID
--> OLAP Catalog [upgrade] VALID
--> EM Repository [upgrade] VALID
--> Oracle Text [upgrade] VALID
--> Oracle XML Database [upgrade] VALID
--> Oracle Java Packages [upgrade] VALID
--> Oracle interMedia [upgrade] VALID
--> Spatial [upgrade] VALID
--> Expression Filter [upgrade] VALID
--> Rule Manager [upgrade] VALID
--> Oracle Application Express [upgrade] VALID
... APEX will only be upgraded if the version of APEX in
... the target Oracle home is higher than the current one.
--> Oracle OLAP API [upgrade] VALID
.
**********************************************************************
Miscellaneous Warnings
**********************************************************************
WARNING: --> The "cluster_database" parameter is currently "TRUE"
.... and must be set to "FALSE" prior to running a manual upgrade.
WARNING: --> Your recycle bin contains 2 object(s).
.... It is REQUIRED that the recycle bin is empty prior to upgrading
.... your database. The command:
PURGE DBA_RECYCLEBIN
.... must be executed immediately prior to executing your upgrade.
WARNING: --> Database contains schemas with objects dependent on DBMS_LDAP package.
.... Refer to the 11g Upgrade Guide for instructions to configure Network ACLs.
.... USER APEX_030200 has dependent objects.
.
**********************************************************************
Recommendations
**********************************************************************
Oracle recommends gathering dictionary statistics prior to
upgrading the database.
To gather dictionary statistics execute the following command
while connected as SYSDBA:
EXECUTE dbms_stats.gather_dictionary_stats;
**********************************************************************
Oracle recommends reviewing any defined events prior to upgrading.
To view existing non-default events execute the following commands
while connected AS SYSDBA:
Events:
SELECT (translate(value,chr(13)||chr(10),' ')) FROM sys.v$parameter2
WHERE UPPER(name) ='EVENT' AND isdefault='FALSE'
Trace Events:
SELECT (translate(value,chr(13)||chr(10),' ')) from sys.v$parameter2
WHERE UPPER(name) = '_TRACE_EVENTS' AND isdefault='FALSE'
Changes will need to be made in the init.ora or spfile.
**********************************************************************
MISC B for utlu112s.sql spool output:
Oracle Database 11.2 Post-Upgrade Status Tool 01-23-2015 22:05:02
.
Component Current Version Elapsed Time
Name Status Number HH:MM:SS
.
Oracle Server
. VALID 11.2.0.4.0 02:30:04
JServer JAVA Virtual Machine
. VALID 11.2.0.4.0 01:41:39
Oracle Real Application Clusters
. VALID 11.2.0.4.0 00:00:10
Oracle Workspace Manager
. VALID 11.2.0.4.0 00:01:57
OLAP Analytic Workspace
. VALID 11.2.0.4.0 00:04:28
OLAP Catalog
. VALID 11.2.0.4.0 00:04:53
Oracle OLAP API
. VALID 11.2.0.4.0 00:02:59
Oracle Enterprise Manager
. VALID 11.2.0.4.0 00:08:52
Oracle XDK
. VALID 11.2.0.4.0 00:02:50
Oracle Text
. VALID 11.2.0.4.0 00:02:12
Oracle XML Database
. VALID 11.2.0.4.0 00:10:46
Oracle Database Java Packages
. VALID 11.2.0.4.0 00:02:01
Oracle Multimedia
. VALID 11.2.0.4.0 03:59:06
Spatial
. VALID 11.2.0.4.0 00:10:10
Oracle Expression Filter
. VALID 11.2.0.4.0 00:01:53
Oracle Rules Manager
. VALID 11.2.0.4.0 00:01:05
Oracle Application Express
. VALID 3.2.1.00.12
Final Actions
. 00:00:01
Total Upgrade Time: 09:05:24
PL/SQL procedure successfully completed.
No comments:
Post a Comment
